Core Reboot:Four Seasons - #18 StatusComponent 구조 리팩터링 및 Robot, PlayerCharacter 공유 위젯 구조 설계

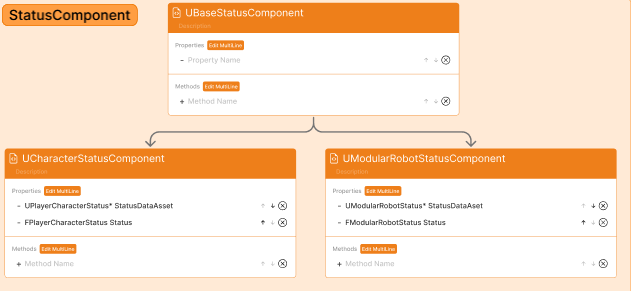

StatusComponent 구조 리팩터링

• 현재 캐릭터, 로봇의 인게임 HUD 구성이 크게 다르지 않음
• 캐릭터의 기본 UI 구성에서 로봇만 가지는 UI들이 추가되는 형태
• 기본 HUD 구성에서 로봇 관련 UI 숨김 처리하기로 결정
• 이후 로봇 탑승한 경우에만 로봇 관련 UI를 보이도록 설정하여 연동하는 형태

BaseStatusComponent

헤더

#include "CoreMinimal.h"
#include "Character/DataAsset/PlayerCharacterStatus.h"
#include "Components/ActorComponent.h"
#include "BaseStatusComponent.generated.h"

DECLARE_MULTICAST_DELEGATE_OneParam(FOnHPChangedDelegate, float /*InPercentage*/)
DECLARE_MULTICAST_DELEGATE_OneParam(FOnResourceChangedDelegate, float /*InPercentage*/)
DECLARE_MULTICAST_DELEGATE(FOnDeathDelegate);


UCLASS(ClassGroup=(Custom), meta=(BlueprintSpawnableComponent))
class CR4S_API UBaseStatusComponent : public UActorComponent
{
	GENERATED_BODY()

public:
	// Sets default values for this component's properties
	UBaseStatusComponent();
#pragma region Get
	FORCEINLINE float GetMaxHP() const { return BaseStatus.MaxHealth; }
	FORCEINLINE float GetCurrentHP() const { return BaseStatus.Health; }

	FORCEINLINE float GetMaxResource() const { return BaseStatus.MaxResource; }
	FORCEINLINE float GetCurrentResource() const { return BaseStatus.Resource; }
	FORCEINLINE float GetResourceConsumptionRate() const { return BaseStatus.ResourceConsumptionRate; }

	FORCEINLINE float GetAttackPower() const { return BaseStatus.AttackPower; }
	FORCEINLINE float GetArmor() const { return BaseStatus.Armor; }

	FORCEINLINE float GetColdThreshold() const { return BaseStatus.ColdThreshold; }
	FORCEINLINE float GetHeatThreshold() const { return BaseStatus.HeatThreshold; }
	FORCEINLINE float GetHumidityThreshold() const { return BaseStatus.HumidityThreshold; }
#pragma endregion

#pragma region Add
	UFUNCTION(BlueprintCallable)
	void AddMaxHP(const float InAmount);
	UFUNCTION(BlueprintCallable)
	void AddCurrentHP(const float InAmount);

	void AddMaxResource(const float InAmount);
	void AddCurrentResource(const float InAmount);
	void AddResourceConsumptionRate(const float InAmount);

	void AddAttackPower(const float InAmount);
	void AddArmor(const float InAmount);
	void AddColdThreshold(const float InAmount);
	void AddHeatThreshold(const float InAmount);
	void AddHumidityThreshold(const float InAmount);
#pragma endregion

#pragma region Override
public:
	// Called every frame
	virtual void TickComponent(float DeltaTime, ELevelTick TickType,FActorComponentTickFunction* ThisTickFunction) override;
protected:
	// Called when the game starts
	virtual void BeginPlay() override;
#pragma endregion

#pragma region Status
protected:
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly)
	FBaseStats BaseStatus;
#pragma endregion

#pragma region Delegate
public:
	FOnHPChangedDelegate OnHPChanged;
	FOnResourceChangedDelegate OnResourceChanged;
	FOnDeathDelegate OnDeathState;
#pragma endregion
};

소스

#include "BaseStatusComponent.h"


// Sets default values for this component's properties
UBaseStatusComponent::UBaseStatusComponent()
{
	// Set this component to be initialized when the game starts, and to be ticked every frame.  You can turn these features
	// off to improve performance if you don't need them.
	PrimaryComponentTick.bCanEverTick = true;

	// ...
}

// Called when the game starts
void UBaseStatusComponent::BeginPlay()
{
	Super::BeginPlay();
}


void UBaseStatusComponent::AddMaxHP(const float InAmount)
{
	BaseStatus.MaxHealth+=InAmount;
	const float Percentage=FMath::Clamp((BaseStatus.Health)/BaseStatus.MaxHealth,0.f,1.f);
	OnHPChanged.Broadcast(Percentage);
}

void UBaseStatusComponent::AddMaxResource(const float InAmount)
{
	BaseStatus.MaxResource+=InAmount;
	const float Percentage=FMath::Clamp((BaseStatus.Resource)/BaseStatus.MaxResource,0.f,1.f);
	OnResourceChanged.Broadcast(Percentage);
}

void UBaseStatusComponent::AddCurrentHP(const float InAmount)
{
	const float Temp=FMath::Clamp(BaseStatus.Health+InAmount,0,BaseStatus.MaxHealth);
	if (Temp <= 0)
	{
		BaseStatus.Health = 0;
		OnDeathState.Broadcast();
	}
	else
	{
		BaseStatus.Health=Temp;
	}
	const float Percentage=FMath::Clamp((BaseStatus.Health)/BaseStatus.MaxHealth,0.f,1.f);
	OnHPChanged.Broadcast(Percentage);
}

void UBaseStatusComponent::AddCurrentResource(const float InAmount)
{
	const float Temp=FMath::Clamp(BaseStatus.Resource+InAmount,0,BaseStatus.Resource);
	BaseStatus.Resource=Temp;
	const float Percentage=FMath::Clamp((BaseStatus.Resource)/BaseStatus.MaxResource,0.f,1.f);
	OnResourceChanged.Broadcast(Percentage);
}

void UBaseStatusComponent::AddResourceConsumptionRate(const float InAmount)
{
	BaseStatus.ResourceConsumptionRate+=InAmount;
}

void UBaseStatusComponent::AddAttackPower(const float InAmount)
{
	BaseStatus.AttackPower+=InAmount;
}

void UBaseStatusComponent::AddArmor(const float InAmount)
{
	BaseStatus.Armor+=InAmount;
}

void UBaseStatusComponent::AddColdThreshold(const float InAmount)
{
	BaseStatus.ColdThreshold+=InAmount;
}

void UBaseStatusComponent::AddHeatThreshold(const float InAmount)
{
	BaseStatus.HeatThreshold+=InAmount;
}

void UBaseStatusComponent::AddHumidityThreshold(const float InAmount)
{
	BaseStatus.HumidityThreshold+=InAmount;
}

// Called every frame
void UBaseStatusComponent::TickComponent(float DeltaTime, ELevelTick TickType,
                                                    FActorComponentTickFunction* ThisTickFunction)
{
	Super::TickComponent(DeltaTime, TickType, ThisTickFunction);

	// ...
}

• PlayerCharacterStatusComponent에서 관리하던 변수들 중 로봇과 공통인 변수들을 해당 클래스에서 관리
• FBaseStats 구조체에 속한 변수들은 로봇, 캐릭터의 공통 변수
• 해당 클래스에서 관리되는 변수의 델리게이트 변수도 선언
• 델리게이트와 연관된 변수값이 조정되는 경우 Broadcast 실시

PlayerCharacterStatusComponent

헤더

#include "CoreMinimal.h"
#include "BaseStatusComponent.h"
#include "Character/DataAsset/PlayerCharacterStatus.h"
#include "PlayerCharacterStatusComponent.generated.h"

DECLARE_MULTICAST_DELEGATE_OneParam(FOnHungerChangedDelegate, float /*InPercentage*/)

class UPlayerCharacterStatusAssets;
class APlayerCharacter;


UCLASS(ClassGroup=(Custom), meta=(BlueprintSpawnableComponent))
class CR4S_API UPlayerCharacterStatusComponent : public UBaseStatusComponent
{
	GENERATED_BODY()

public:
	// Sets default values for this component's properties
	UPlayerCharacterStatusComponent();
#pragma region Get
	FORCEINLINE float GetMaxHunger() const { return PlayerStatus.MaxHunger; }
	FORCEINLINE float GetCurrentHunger() const { return PlayerStatus.Hunger; }
#pragma endregion

#pragma region Add
	void AddMaxHunger(const float InAmount);
	void AddCurrentHunger(const float InAmount);
#pragma endregion

#pragma region Override
public:
	// Called every frame
	virtual void TickComponent(float DeltaTime, ELevelTick TickType,FActorComponentTickFunction* ThisTickFunction) override;
protected:
	// Called when the game starts
	virtual void BeginPlay() override;
#pragma endregion


#pragma region DataAsset
protected:
	UPROPERTY(EditAnywhere,BlueprintReadOnly,Category="StatusData")
	TObjectPtr<UPlayerCharacterStatusAsset> StatusData;
#pragma endregion

#pragma region Owner
protected:
	UPROPERTY(VisibleAnywhere,BlueprintReadOnly,Category="Owner")
	TObjectPtr<APlayerCharacter> OwningCharacter;
#pragma endregion

#pragma region Status
private:
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, meta=(AllowPrivateAccess=true))
	FPlayerCharacterStats PlayerStatus;
#pragma endregion

#pragma region Delegate
public:
	FOnHungerChangedDelegate OnHungerChanged;
#pragma endregion
};

소스

#include "PlayerCharacterStatusComponent.h"
#include "Character/Characters/PlayerCharacter.h"


// Sets default values for this component's properties
UPlayerCharacterStatusComponent::UPlayerCharacterStatusComponent()
{
	// Set this component to be initialized when the game starts, and to be ticked every frame.  You can turn these features
	// off to improve performance if you don't need them.
	PrimaryComponentTick.bCanEverTick = false;
}


// Called when the game starts
void UPlayerCharacterStatusComponent::BeginPlay()
{
	Super::BeginPlay();

	OwningCharacter=Cast<APlayerCharacter>(GetOwner());

	if (StatusData)
	{
		BaseStatus=StatusData->BaseStats;
		PlayerStatus=StatusData->PlayerStats;
	}
}

// Called every frame
void UPlayerCharacterStatusComponent::TickComponent(float DeltaTime, ELevelTick TickType,
                                                    FActorComponentTickFunction* ThisTickFunction)
{
	Super::TickComponent(DeltaTime, TickType, ThisTickFunction);

	// ...
}

void UPlayerCharacterStatusComponent::AddMaxHunger(const float InAmount)
{
	PlayerStatus.MaxHunger+=InAmount;
	const float Percentage=FMath::Clamp((PlayerStatus.Hunger)/PlayerStatus.MaxHunger,0.f,1.f);
	OnHungerChanged.Broadcast(Percentage);
}

void UPlayerCharacterStatusComponent::AddCurrentHunger(const float InAmount)
{
	const float Temp=FMath::Clamp(PlayerStatus.Hunger+InAmount,0,PlayerStatus.MaxHunger);
	PlayerStatus.Hunger=Temp;
	const float Percentage=FMath::Clamp((PlayerStatus.Hunger)/PlayerStatus.MaxHunger,0.f,1.f);
	OnHungerChanged.Broadcast(Percentage);
}

• 플레이어에서만 관리하면 되는 변수들을 추가 관리하기 위한 클래스
• BaseStatusComponent를 상속
• 배고픔 관련 변수 추가 및 UI 업데이트를 위한 델리게이트 추가
• BeginPlay 에서 데이터 에셋 값으로 구조체 변수 초기화

ModularRobotStatusComponent

헤더

#include "CoreMinimal.h"
#include "BaseStatusComponent.h"
#include "Character/DataAsset/ModularRobotStatus.h"
#include "ModularRobotStatusComponent.generated.h"

DECLARE_MULTICAST_DELEGATE_OneParam(FOnEnergyChangedDelegate, float);
DECLARE_MULTICAST_DELEGATE_OneParam(FOnStunChangedDelegate, float);
DECLARE_MULTICAST_DELEGATE_OneParam(FOnWeightChangedDelegate, float);

class AModularRobot;
class UModularRobotStatusAsset;

UCLASS(ClassGroup=(Custom), meta=(BlueprintSpawnableComponent))
class CR4S_API UModularRobotStatusComponent : public UBaseStatusComponent
{
	GENERATED_BODY()

public:
	UModularRobotStatusComponent();

#pragma region Get
	FORCEINLINE float GetMaxEnergy() const { return RobotStatus.MaxEnergy; }
	FORCEINLINE float GetCurrentEnergy() const { return RobotStatus.Energy; }
	FORCEINLINE float GetEnergyConsumptionRate() const { return RobotStatus.EnergyConsumptionRate; }

	FORCEINLINE float GetMaxStun() const { return RobotStatus.MaxStun; }
	FORCEINLINE float GetCurrentStun() const { return RobotStatus.Stun; }
	FORCEINLINE float GetStunResistance() const { return RobotStatus.StunResistance; }

	FORCEINLINE float GetArmorMultiplier() const { return RobotStatus.ArmorMultiplier; }
	FORCEINLINE float GetAttackPowerMultiplier() const { return RobotStatus.AttackPowerMultiplier; }

	FORCEINLINE float GetMaxWeight() const { return RobotStatus.MaxWeight; }
	FORCEINLINE float GetCurrentWeight() const { return RobotStatus.Weight; }
#pragma endregion

#pragma region Add
	void AddMaxEnergy(const float InAmount);
	UFUNCTION(BlueprintCallable)
	void AddEnergy(const float InAmount);

	void AddMaxStun(const float InAmount);
	UFUNCTION(BlueprintCallable)
	void AddStun(const float InAmount);
	void AddStunResistance(const float InAmount);

	void AddArmorMultiplier(const float InAmount);
	void AddAttackPowerMultiplier(const float InAmount);

	void AddMaxWeight(const float InAmount);
	void AddWeight(const float InAmount);
#pragma endregion

#pragma region Override
public:
	// Called every frame
	virtual void TickComponent(float DeltaTime, ELevelTick TickType,FActorComponentTickFunction* ThisTickFunction) override;
protected:
	// Called when the game starts
	virtual void BeginPlay() override;
#pragma endregion


#pragma region DataAsset
protected:
	UPROPERTY(EditAnywhere,BlueprintReadOnly,Category="StatusData")
	TObjectPtr<UModularRobotStatusAsset> StatusData;
#pragma endregion

#pragma region Owner
protected:
	UPROPERTY(VisibleAnywhere,BlueprintReadOnly,Category="Owner")
	TObjectPtr<AModularRobot> OwningCharacter;
#pragma endregion

#pragma region Status
private:
	UPROPERTY(VisibleAnywhere, BlueprintReadOnly, meta=(AllowPrivateAccess=true))
	FModularRobotStats RobotStatus;
#pragma endregion

#pragma region Delegate
public:
	FOnEnergyChangedDelegate OnEnergyChanged;
	FOnStunChangedDelegate OnStunChanged;
	FOnWeightChangedDelegate OnWeightChanged;
#pragma endregion
};

소스

#include "ModularRobotStatusComponent.h"
#include "Character/Characters/ModularRobot.h"


// Sets default values for this component's properties
UModularRobotStatusComponent::UModularRobotStatusComponent()
{
	// Set this component to be initialized when the game starts, and to be ticked every frame.  You can turn these features
	// off to improve performance if you don't need them.
	PrimaryComponentTick.bCanEverTick = true;
}


// Called when the game starts
void UModularRobotStatusComponent::BeginPlay()
{
	Super::BeginPlay();

	OwningCharacter=Cast<AModularRobot>(GetOwner());

	if (StatusData)
	{
		BaseStatus=StatusData->BaseStats;
		RobotStatus=StatusData->RobotStats;
	}
}

// Called every frame
void UModularRobotStatusComponent::TickComponent(float DeltaTime, ELevelTick TickType,
												 FActorComponentTickFunction* ThisTickFunction)
{
	Super::TickComponent(DeltaTime, TickType, ThisTickFunction);

	// ...
}


void UModularRobotStatusComponent::AddMaxEnergy(const float InAmount)
{
	RobotStatus.MaxEnergy+=InAmount;
	const float Percentage=FMath::Clamp(RobotStatus.Energy/RobotStatus.MaxEnergy,0.f,1.f);
	OnEnergyChanged.Broadcast(Percentage);
}

void UModularRobotStatusComponent::AddEnergy(const float InAmount)
{
	const float Temp=FMath::Clamp(RobotStatus.Energy+InAmount,0.f,RobotStatus.MaxEnergy);
	RobotStatus.Energy=Temp;
	const float Percentage=FMath::Clamp(RobotStatus.Energy/RobotStatus.MaxEnergy,0.f,1.f);
	OnEnergyChanged.Broadcast(Percentage);
}

void UModularRobotStatusComponent::AddMaxStun(const float InAmount)
{
	RobotStatus.MaxStun+=InAmount;
	const float Percentage=FMath::Clamp(RobotStatus.Stun/RobotStatus.MaxStun,0.f,1.f);
	OnStunChanged.Broadcast(Percentage);
}

void UModularRobotStatusComponent::AddStun(const float InAmount)
{
	const float Temp=FMath::Clamp(RobotStatus.Stun+InAmount,0.f,RobotStatus.MaxStun);
	RobotStatus.Stun=Temp;
	const float Percentage=FMath::Clamp(RobotStatus.Stun/RobotStatus.MaxStun,0.f,1.f);
	OnStunChanged.Broadcast(Percentage);
}

void UModularRobotStatusComponent::AddStunResistance(const float InAmount)
{
	RobotStatus.StunResistance+=InAmount;
}

void UModularRobotStatusComponent::AddArmorMultiplier(const float InAmount)
{
	RobotStatus.ArmorMultiplier+=InAmount;
}

void UModularRobotStatusComponent::AddAttackPowerMultiplier(const float InAmount)
{
	RobotStatus.AttackPowerMultiplier+=InAmount;
}

void UModularRobotStatusComponent::AddMaxWeight(const float InAmount)
{
	RobotStatus.MaxWeight+=InAmount;
	const float Percentage=FMath::Clamp(RobotStatus.Weight/RobotStatus.MaxWeight,0.f,1.f);
	OnWeightChanged.Broadcast(Percentage);
}

void UModularRobotStatusComponent::AddWeight(const float InAmount)
{
	const float Temp=FMath::Clamp(RobotStatus.Weight+InAmount,0.f,RobotStatus.MaxWeight);
	RobotStatus.Weight=Temp;
	const float Percentage=FMath::Clamp(RobotStatus.Weight/RobotStatus.MaxWeight,0.f,1.f);
	OnWeightChanged.Broadcast(Percentage);
}

• 로봇에서만 관리하면 되는 추가 변수들을 관리하는 클래스
• BaseStatusComponent 상속
• UI 업데이트가 필요한 변수들은 델리게이트 추가
• BeginPlay 에서 데이터 에셋 값으로 구조체 변수 초기화

위젯 클래스 관련 변경

void UCharacterStatusWidget::ToggleWidgetMode(const bool bIsRobot)
{
	if (Energy)
	{
		Energy->SetVisibility((bIsRobot
			? ESlateVisibility::Visible
			: ESlateVisibility::Hidden));
	}
	if (Stun)
	{
		Stun->SetVisibility((bIsRobot
			? ESlateVisibility::Visible
			: ESlateVisibility::Hidden));
	}
	if (Resource)
	{
		Resource->SetFillColorAndOpacity(bIsRobot
			? FColor::Red
			: FColor::Yellow);
	}
}

• 로봇, 캐릭터 빙의 교체 시점에 호출되는 함수
• 로봇에 탑승하게 되면 Energy, Stun에 해당하는 UI 위젯들을 보이도록 처리
• 반대로 캐릭터로 돌아오면 위 2개 UI는 Hidden으로 설정하여 보이지 않게 처리
• 추가적으로 자원 관련 변수는 둘다 보이지만 교체 시점에 알맞은 색으로 변경

---

참고자료
